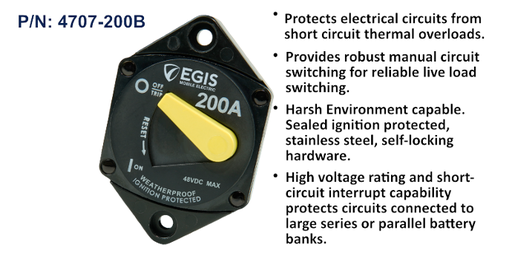

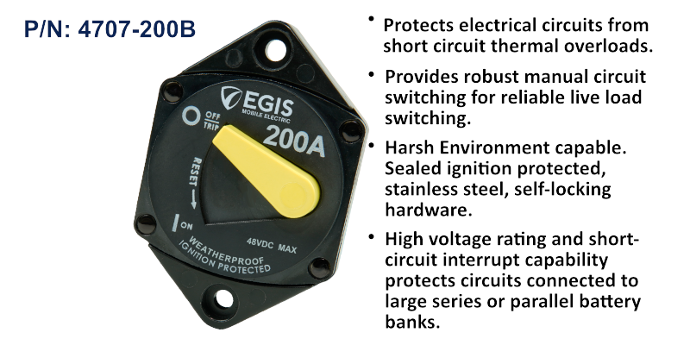

Circuit Breaker 87 Series, Pnl Mnt, 200 A, Bulk Pack

    80.00 80.0 USD 80.00

    80.00

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.


    Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.

    Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.

    Product Video




    Feature Summary

    IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

    High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc

    High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current

    High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

    4 Year Warranty: We stand behind our product's ability to meet your needs.

    Sales Sheet

    Step File

    Social Media


    CONTINUOUS
    CURRENT (AMPS)

    200

    MAX VOLTAGE
    (VDC)

    48

    CYCLING
    ENDURANCE
    2,000

    INTERRUPT CURRENT @ 14 VDC (AMPS)
    5,000

    INTERRUPT CURRENT @ 28 VDC (AMPS)
    3,000

    INGRESS PROTECTION RATING
    IP66

    Focal Features

    ON/OFF High Visibility Controls

    Sealed against dust and moisture penetration. High temp rated for all installation locations.

    Circular Design

    Compatible with circular cutout enables easy in panel installation.

    Stainless Steel Hardware / Serrated Flange Nuts

    Corrosion and vibration resistant for harsh environment applications.

    Made in the USA of high quality components.
