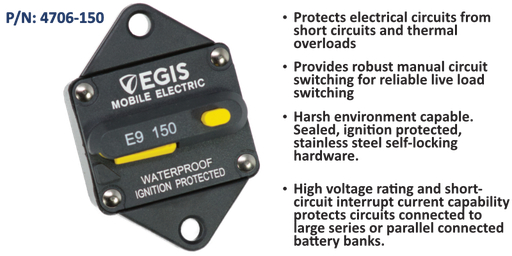

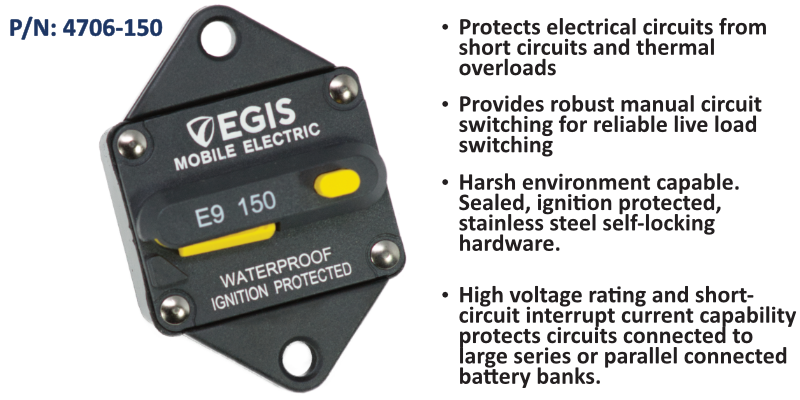

Circuit Breaker, Panel Mount, 150 Amp, Bulk Pack

    33.60 33.6 USD 33.60

    33.60

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     DESCRIPTION

    Applications / Problems This Solves

    Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

    Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.

    Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.

    Feature Summary

    Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

    High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

    High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

    High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

    4 Year Warranty: We stand behind our product's ability to meet your needs.

     PRIMARY SPECS

    CONTINUOUS
    CURRENT (AMPS)

    150
    Max Voltage
    (vdc)

    48
    cycling
    ENDURANCE
    6,000
    Interrupt Current @ 16 Vdc (Amps)
    5,000
    INTERRUPT CURRENT @ 28 VDC (AMPS)
    3,000
    ingress protection rating
    IP67

     DOWNLOADS

    REFERENCE INFO
    Sales Sheet, Specification & Installation Information

    2/25/21 Product Change Notice
    ARTICLES
    Check back here for product related articles
    MARKETING MATERIALS
    Sales Sheet, Specification & Installation Information

    Sales & Specification Sheet
    DIAGNOSTICS
    See FAQ section below for further assistance

     FOCAL FEATURES

    ON/OFF HIGH VISIBILITY CONTROLS

    Sealed against dust and moisture penetration. High temp rated for all installation locations.

    PANEL MOUNT FLANGE

    Provides Rear  / Front panel installation options

    STAINLESS HARDWARE / SERRATED FLANGE NUTS

    Corrosion and vibration resistant for harsh environment applications.

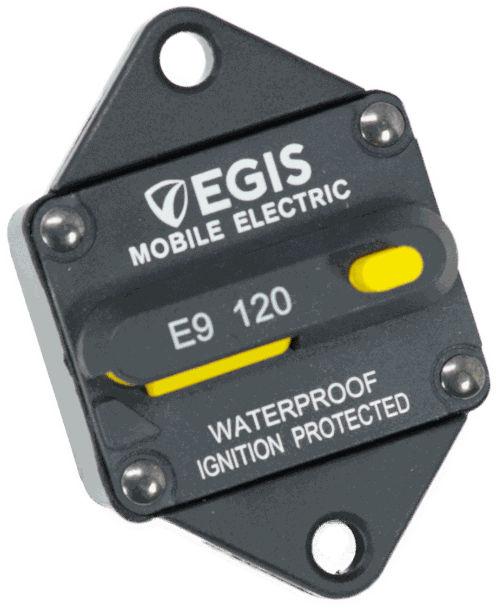

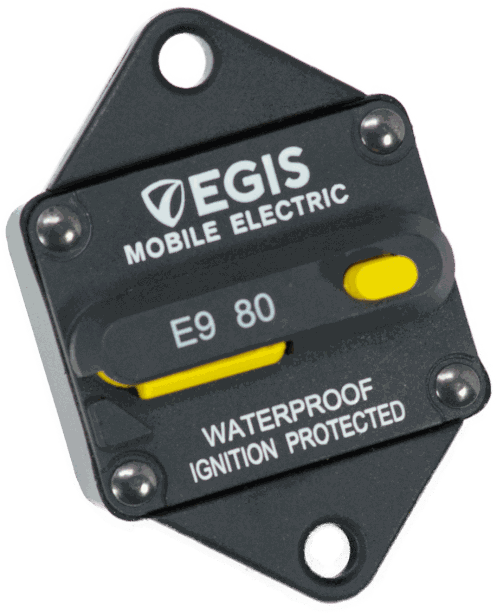

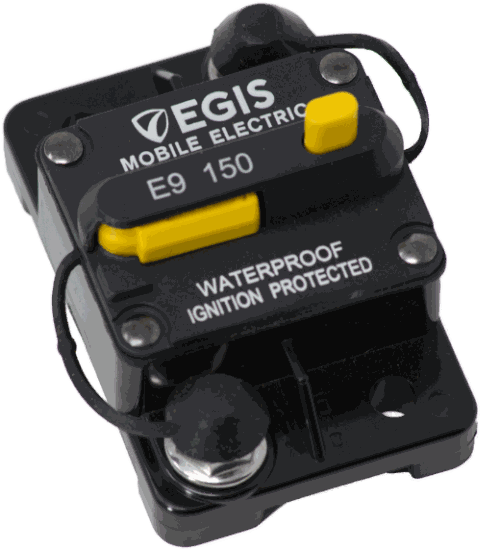

     RELATED PRODUCTS
