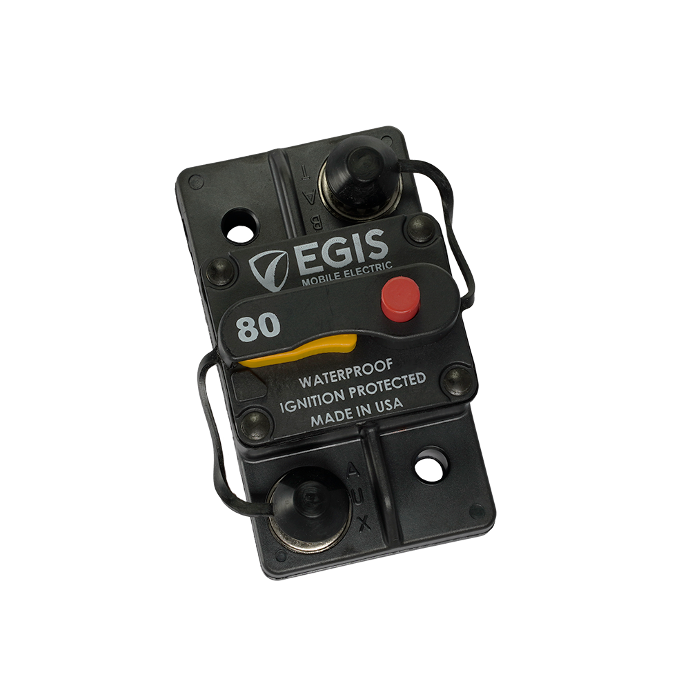

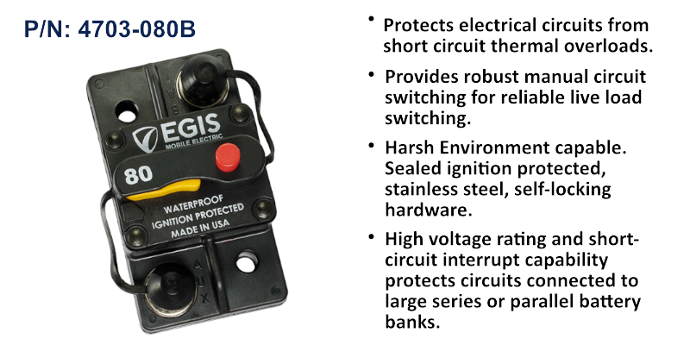

Circuit Breaker, Surface Mount, 80 Amp, Bulk Pack

    34.20 34.2 USD 34.20

    34.20

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.


    Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.

    Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.

    Feature Summary

    Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

    High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

    High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

    High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

    4 Year Warranty: We stand behind our product's ability to meet your needs.

    Information Sheet

    STEP File

    Social Media



    CONTINUOUS
    CURRENT (AMPS)

    80

    MAX VOLTAGE
    (VDC)

    48

    CYCLING
    ENDURANCE (6x Rating)
    100

    INTERRUPT CURRENT @ 14 VDC (AMPS)
    3,000

    INTERRUPT CURRENT @ 48 VDC (AMPS)
    1,500

    INGRESS PROTECTION RATING
    IP67

    Focal Features

    ON/OFF High Visibility Controls

    Sealed against dust and moisture penetration. High temp rated for all installation locations.

    Integrated Terminal Insulators

    Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

    Stainless Steel Hardware / Serrated Flange Nuts

    Corrosion and vibration resistant for harsh environment applications.

    Made in the USA of high quality components.
