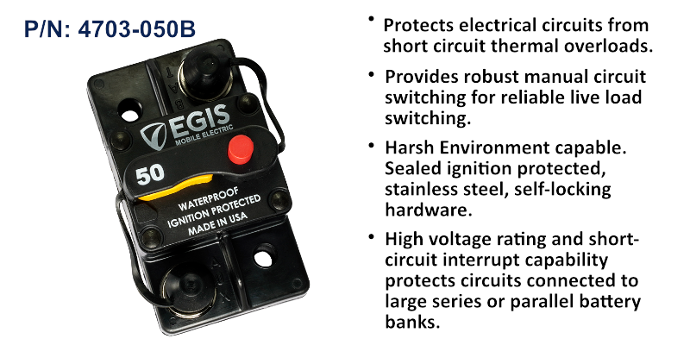

Circuit Breaker, Surface Mount, 50 Amp, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.
Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.
Feature Summary
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
50
MAX VOLTAGE
(VDC)
48
CYCLING
ENDURANCE (6x Rating)
100
INTERRUPT CURRENT @ 14 VDC (AMPS)
3,000
INTERRUPT CURRENT @ 48 VDC (AMPS)
1,500
INGRESS PROTECTION RATING
IP67
Focal Features
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Integrated Terminal Insulators
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistant for harsh environment applications.
