Description
Applications / Problems This Solves

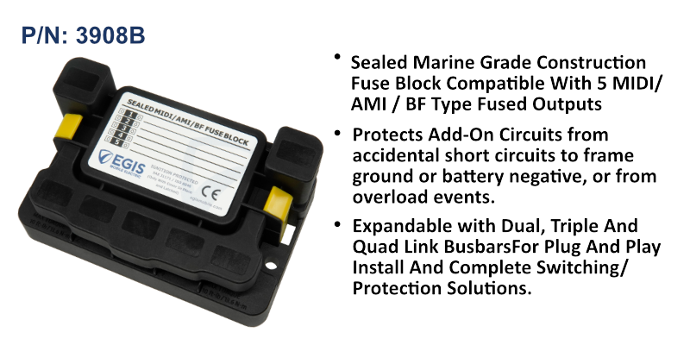

Expandable with Dual, Triple And Quad Link Busbars For Plug And Play Install And Complete Switching/Protection Solutions.
Feature Summary
Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism hold cover on securely.
TOTAL CONTINUOUS
CURRENT (AMPS)
500
MAX MIDI/AMI Fuse Value (Amps)
200
Ingress Protection
IP66 & IP6K9K
Ignition Protected (SAE J1171)?
Yes
OUtput Stud Size
M6
Input Stud Size
M8
Focal Features
System Compatible
With Egis Mobile Electric MT Series Sealed Circuit Breaker / Fuse Blocks And XD Series High Amp Remote Relays Via Optional Dual, Triple & Quad Link Busbars

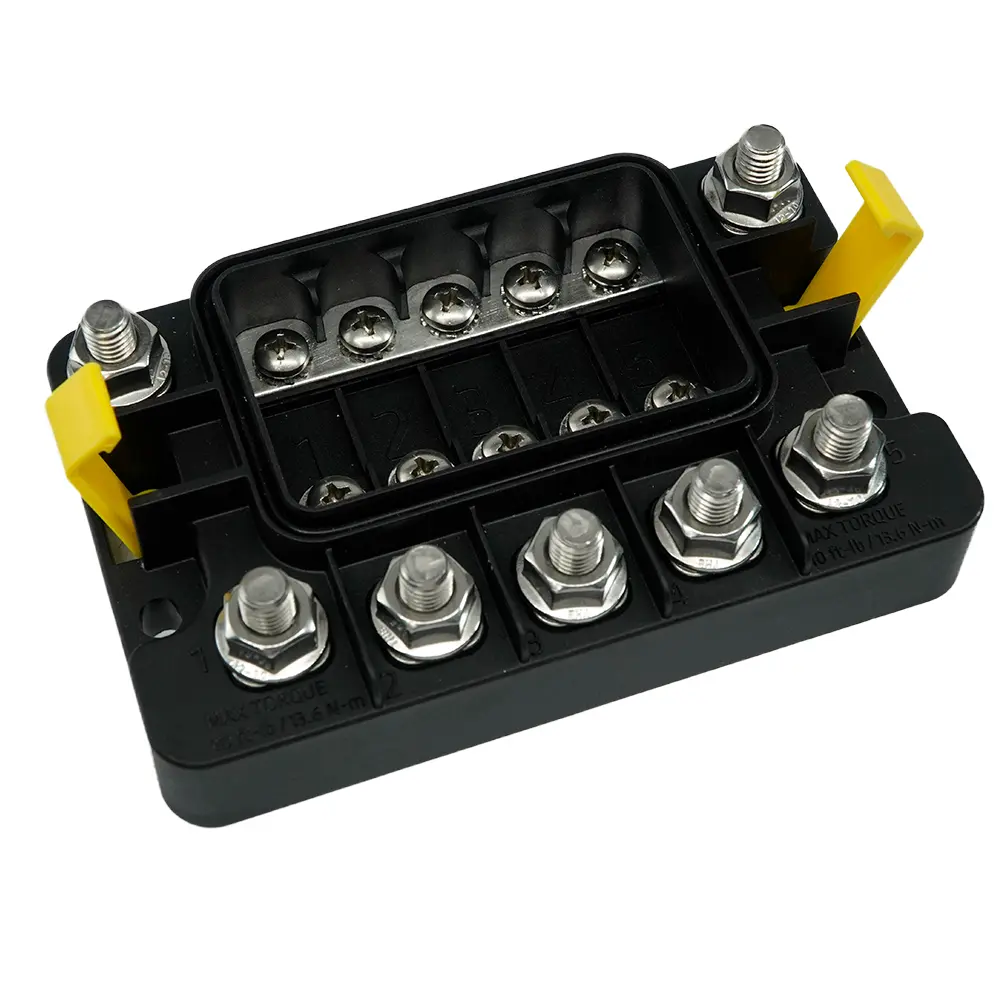

Easy Visual Fuse Blown Status
With Cover Off, Ensuring Quick Identification And Easy Self Locking Stainless Fuse Screws
Fuse Identification
Protective Cover Label Provides Easy Naming Of Fused Circuits.
Sealed Housing
Protects Against Harsh Environments Ideal For Modern Vessel Installs
Stainless Steel, Self Locking Hardware
Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
High Visibility Cover Latches
Protects output terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Convenient Spare Fuse Holder
Keeps Two (2) Spare Fuse Held In The Cover With Four (4) Spare Screws
