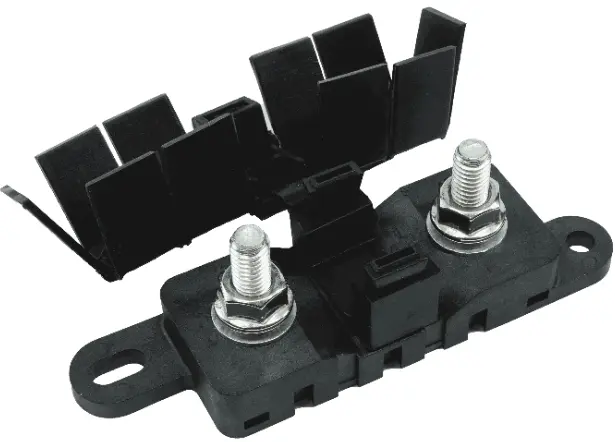

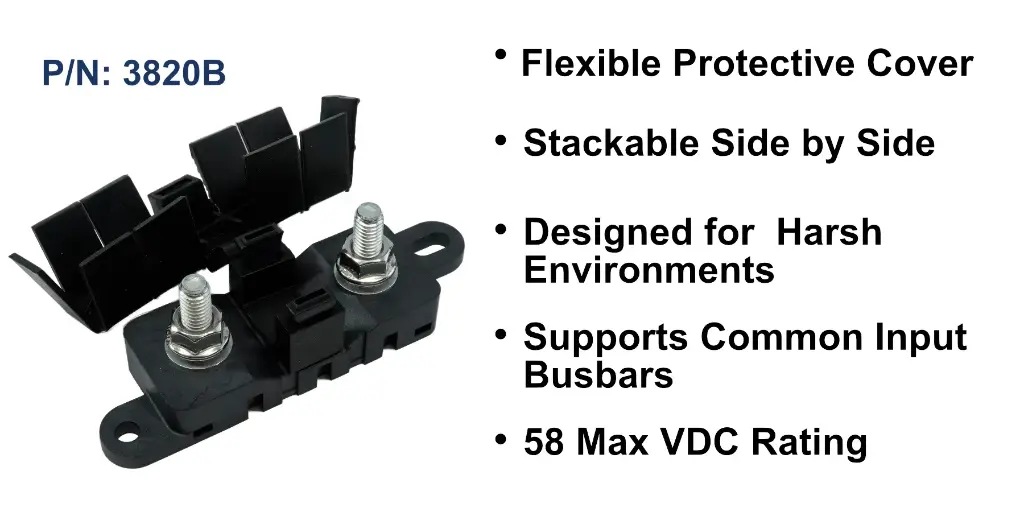

MEGA Fuse Block, M8 Stainless Self-Locking Hardware, Black Cover, Bulk Pack
Find Distributors Local Sales Reps
For B2B Pricing, Contact Us
At: sales@egismobile.com
Description
Applications / Problems This Solves
High Tolerance Mounting Hole Provisions ensures simple and fast installation with a wide variety of mounting plate preparation approaches.
Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.
Feature Summary
58 Max Vdc Rating easily supports 12, 24, 36, and 48 Nominal Vdc applications. Ideal for trolling motor switching applications.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty We stand behind our product's ability to meet your needs.
CONTINUOUS
CURRENT (AMPS)
30
MAX VOLTAGE
(VDC)
58
CE MArked
Yes
INTERRUPT CURRENT @ 14 VDC (AMPS)
3,000
Cycle Switching Endurance
4,000
INGRESS PROTECTION RATING
IP66
Focal Features

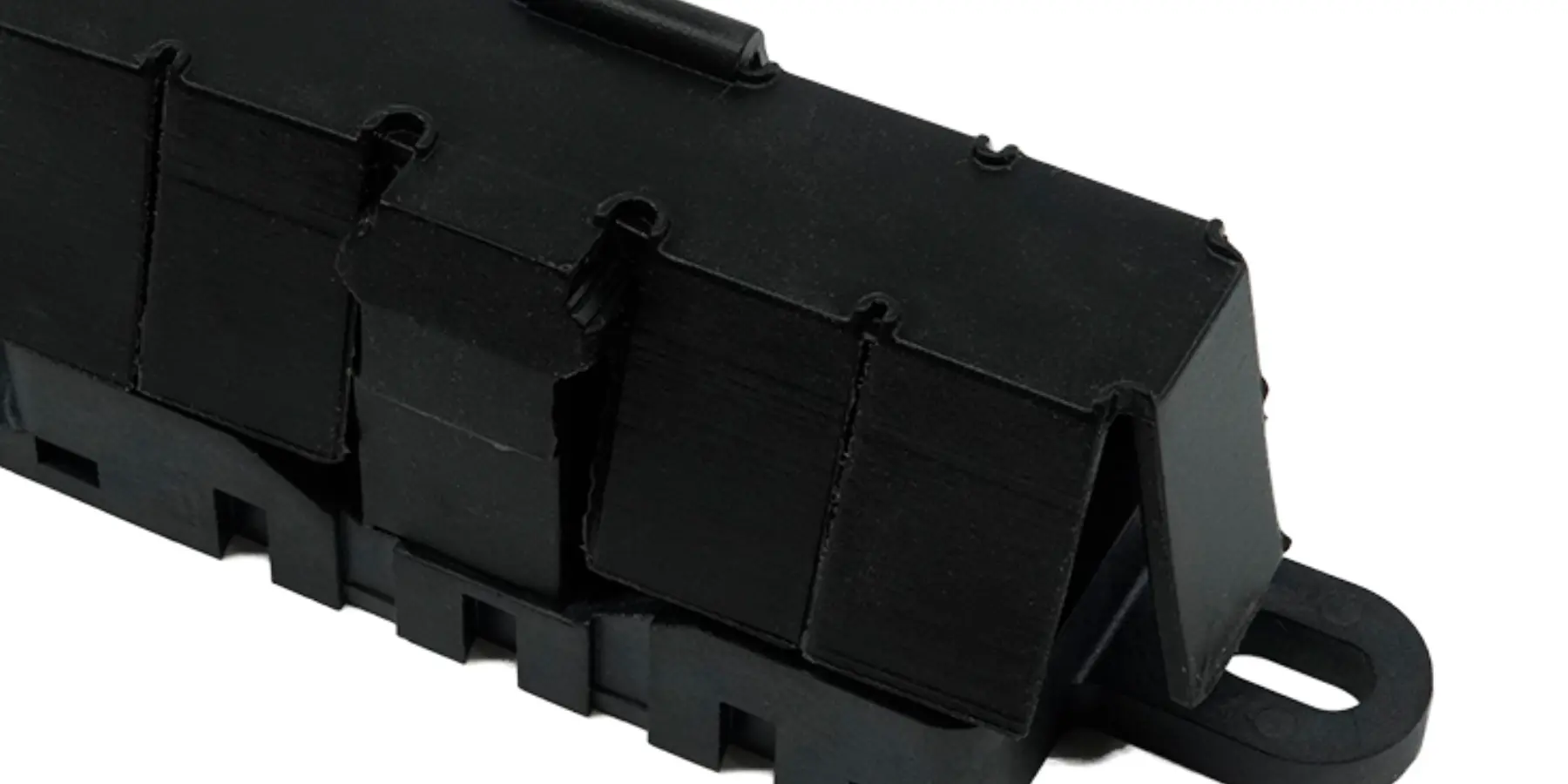

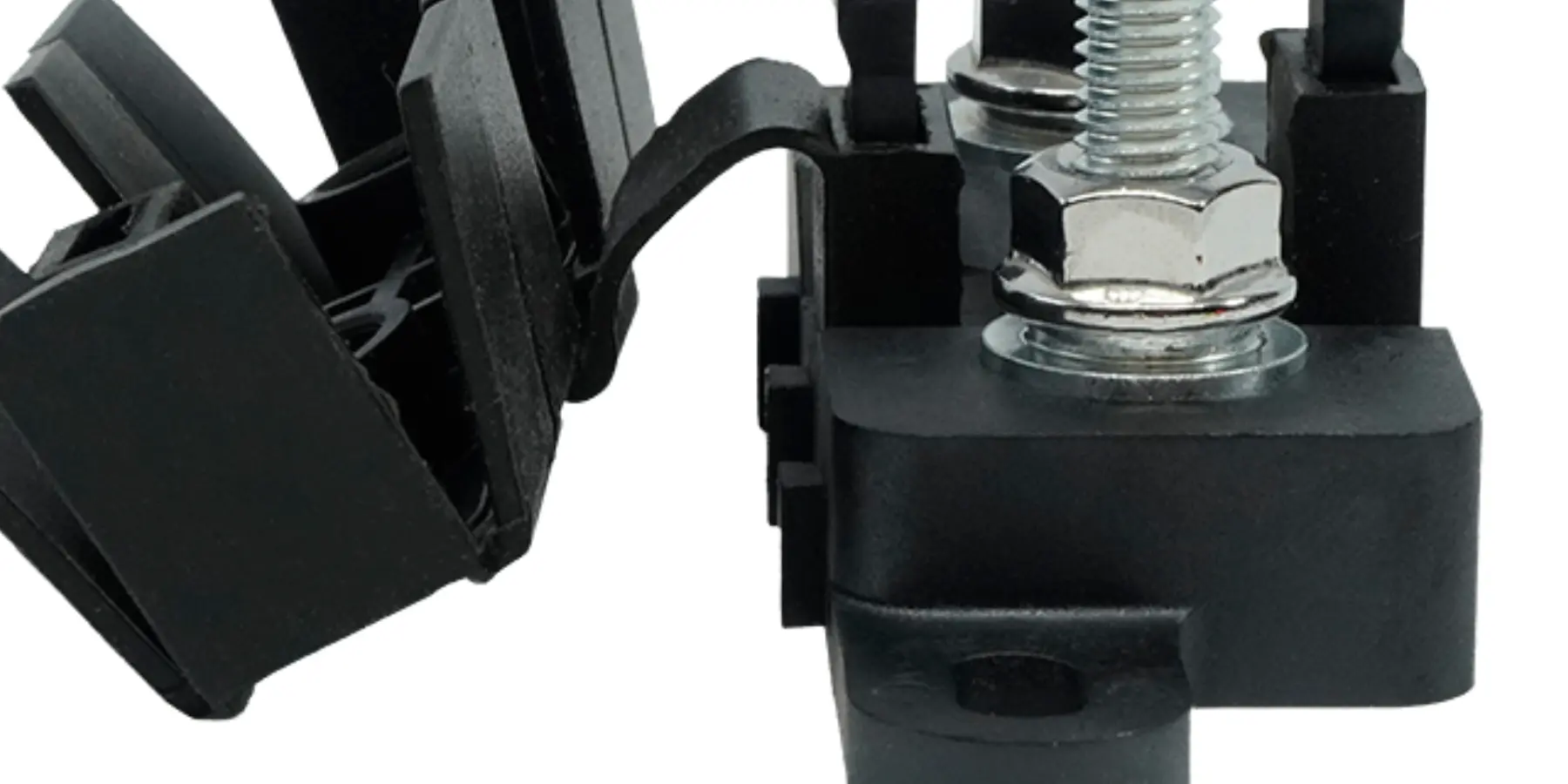

Flexible Protective Cover
Ensures full 360 degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits.

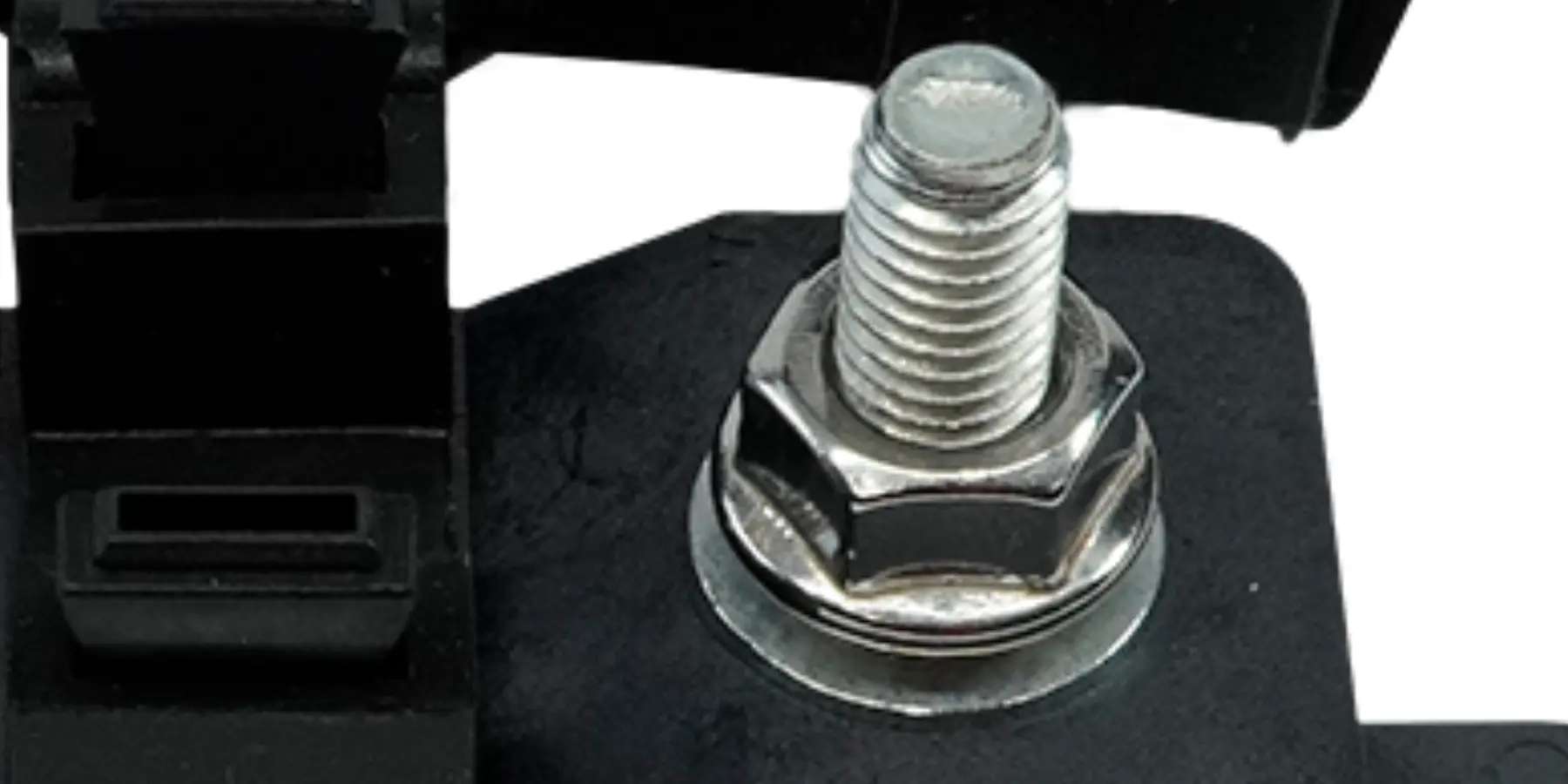

Serrated Flange Lock Nuts
Improves resistance to cable terminal loosening in high-vibration environments.
Common Input Busbar Support
Input stud length supports Busbars when stacked side-by-side.

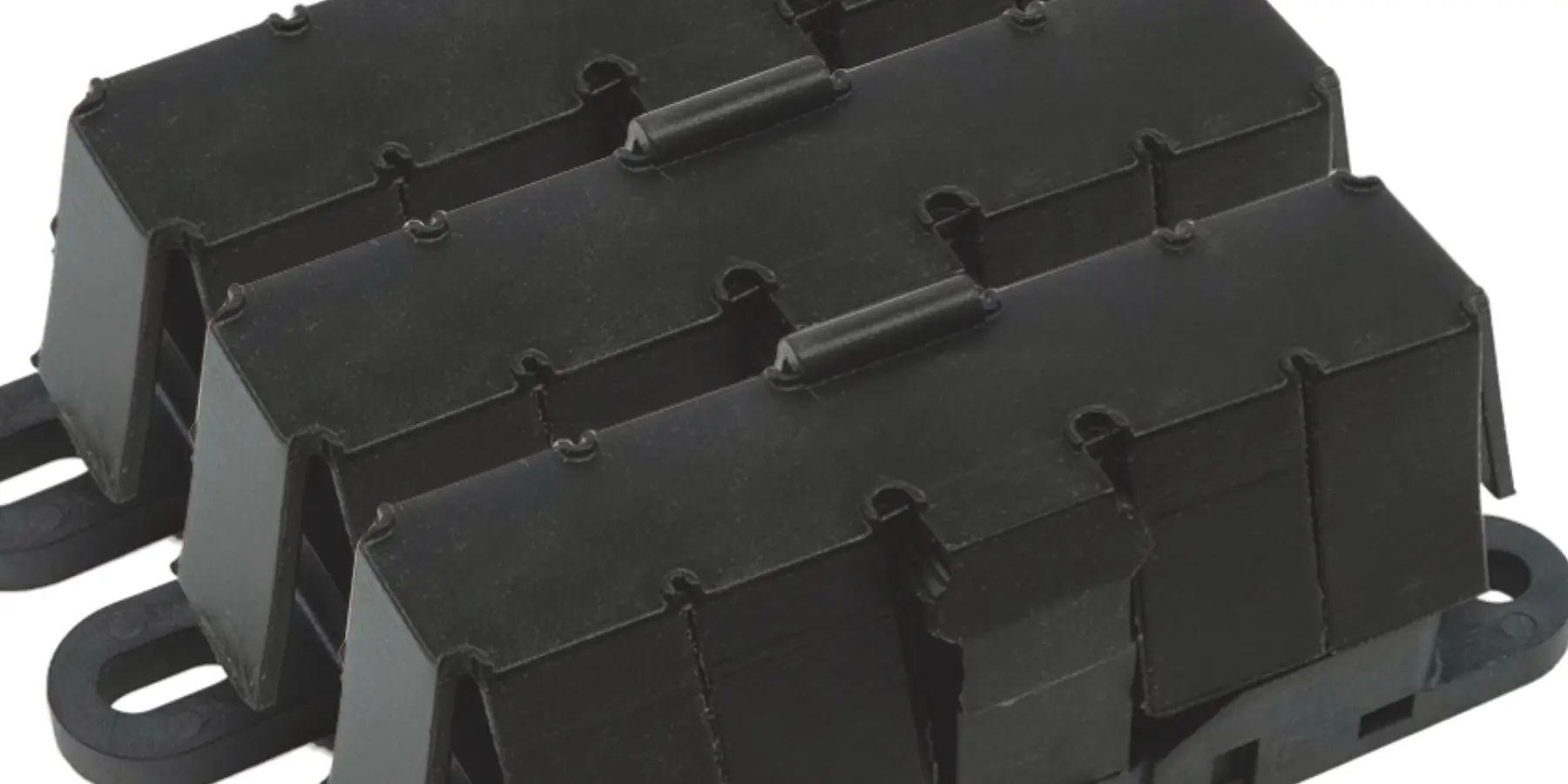

Stackable Side by Side Design
Features interlocking dove-tail connections in the composite base.
