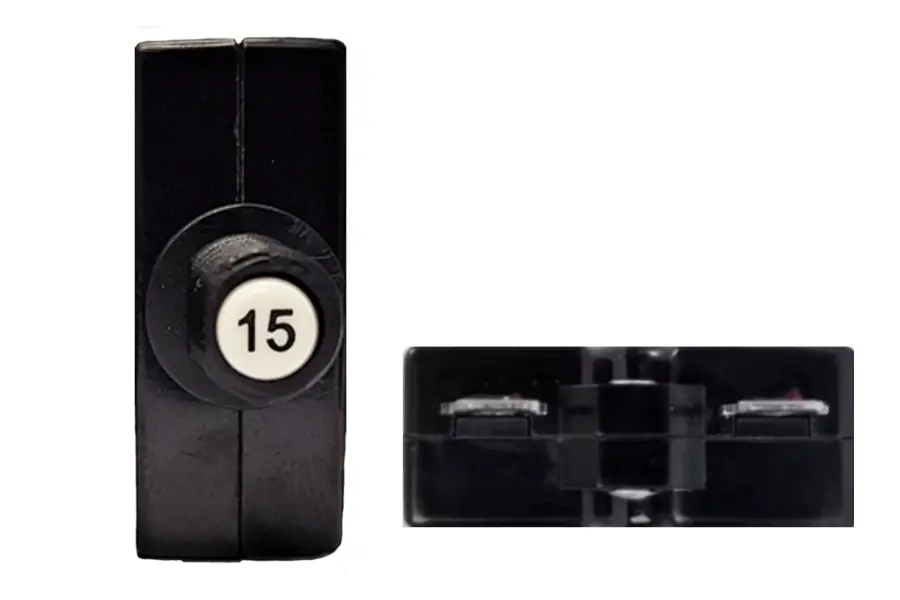

Push To Reset Panel Mount Circuit Breakers

Type 3 Push To Reset Operation

Ignition Protected

50V - Voltage Rating

High Inrush Current Rating

Panel Mount Type

4710 - Panel Mount W/ Screw Terminals

3 Amp 5 Amp

7 Amp 10 Amp

15 Amp 20 Amp

25 Amp 30 Amp

4711 Panel Mount W/ Spade Terminals

3 Amp 5 Amp

7 Amp 10 Amp

15 Amp 20 Amp

25 Amp 30 Amp

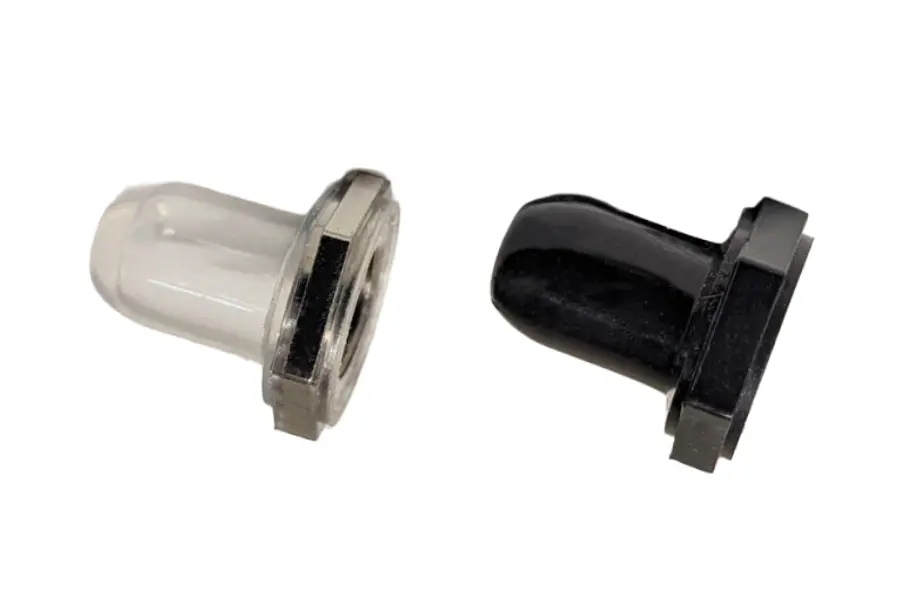

Button Boots

Clear Button Boot

Black Button Boot

Continous Current Rating (Amps)
3-40

MAX VOLTAGE
(VDC)
50VDC

Ignition Protected?
Yes

INGRESS PROTECTION RATING
IP40

Interrupt Current @ 50 VDC (Amps)
300

Documentation & CAD Files

Information Sheet
