Medium Duty P ush-To-Reset Circuit Breakers
Automatic Circuit Protection & Manual On/Off Switching
32V - Voltage Rating

Trip-Free Design


Meets ABYC E-11 Interrupt Requirements


Made In The U.S.A.


CE Marked

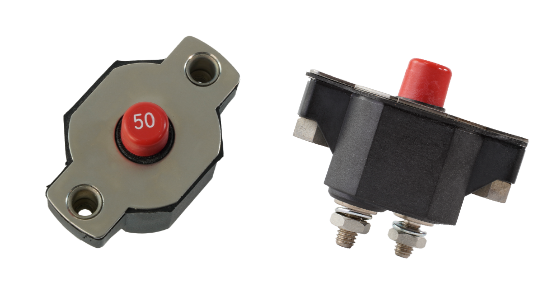

4712 Panel Mount
Medium Duty Circuit Breakers

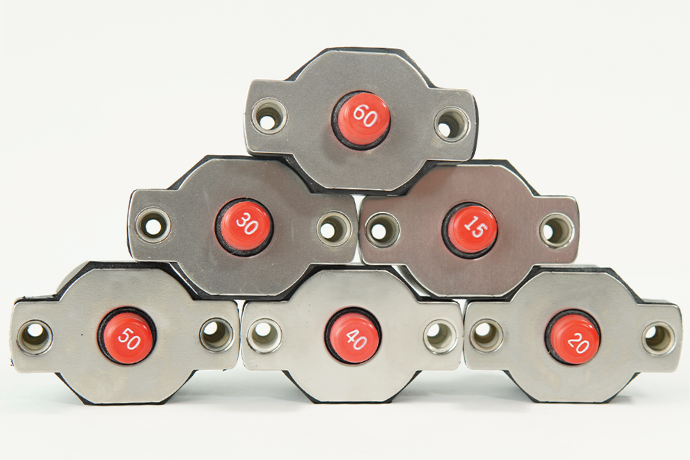

 15 Amp             20 Amp

30 Amp         40 Amp

 50 Amp         60 Amp

Panel Mount 15 Amp - 60 Amp

MAX VOLTAGE
(VDC)
32

14Vdc Electrical Endurance (Cycles)
6,000

INrush Rating @ ½ Cycle (.008sec)
35X

INGRESS PROTECTION RATING
J1428

CE Marked?


Yes

 Focal Features

Compact Design

Easy to install in close proximity for maximum circuit protection panel density.

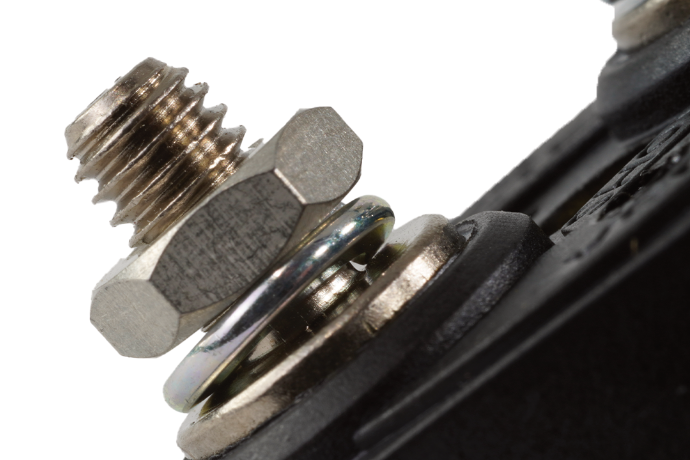

Locking Hardware

Anti rotation & corrosion resistant hardware ensure long service life in harsh environments.

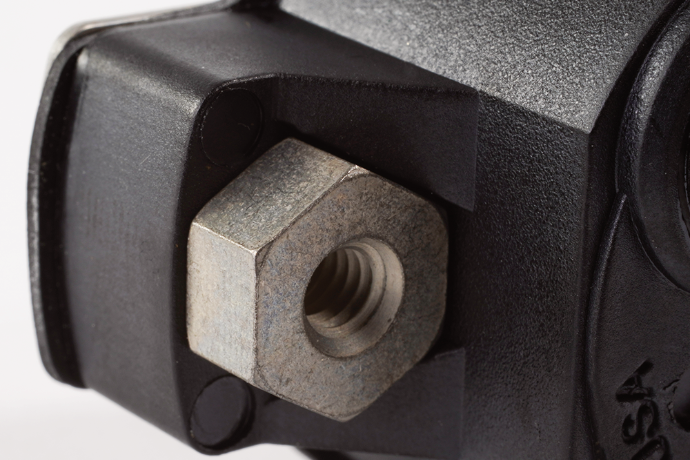

10-32 Mounting Nut

Easily install breaker with preferred 10-10-32" threaded fastener.

Made in the USA of high quality components.

Documentation & CAD Files

4712

Information Sheet

4712

STEP File
