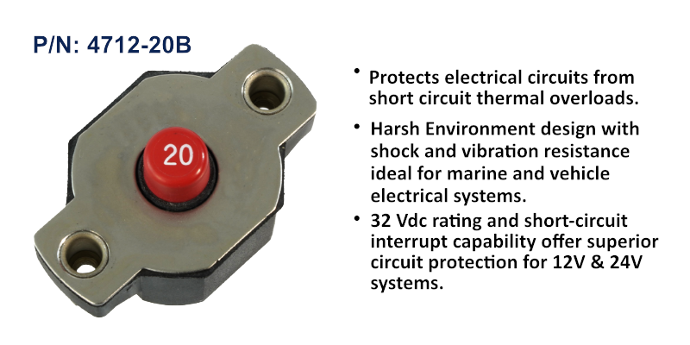

Circuit Breaker, Medium Duty Push Button Reset Only, 20 Amp, Bulk Pack

    36.00 36.0 USD 36.00

    36.00

    This combination does not exist.


     Find Distributors         Local Sales Reps

    For B2B Pricing, Contact Us At: sales@egismobile.com

     Description

    Applications / Problems This Solves

    Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

    High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power

    Ignition Protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.

    Automatic Circuit Protection & Manual On/Off Switching combines dual functionality in one reliable and compact solution.

    Allows for Circuit Isolation and Maintenance of Load Circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location.

    Feature Summary

    Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
    32 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.

    Trip-Free Design cannot be forced on during fault condition.

    Meets ABYC E-11 Interrupt Requirements

    High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

    4 Year WarrantyWe stand behind our product's ability to meet your needs.

    Information Sheet

    STEP File

    Social Media



    CONTINUOUS
    CURRENT (AMPS)

    20

    MAX VOLTAGE
    (VDC)

    32

    CYCLING
    ENDURANCE
    100

    INTERRUPT CURRENT @ 32 VDC (AMPS)
    3,000

    Trip Free Design?
    Yes

    INGRESS PROTECTION RATING

    J1428

     Focal Features

    Compact Design

    Easy to install in close proximity for maximum circuit protection panel density.

    Locking Hardware

    Anti rotation & corrosion resistant hardware ensure long service life in harsh environments.

    10-32 Mounting Nut

    Easily install breaker with preferred 10-10-32" threaded fastener.

    Made in the USA of high quality components.
