ATM / MINI Circuit Breakers

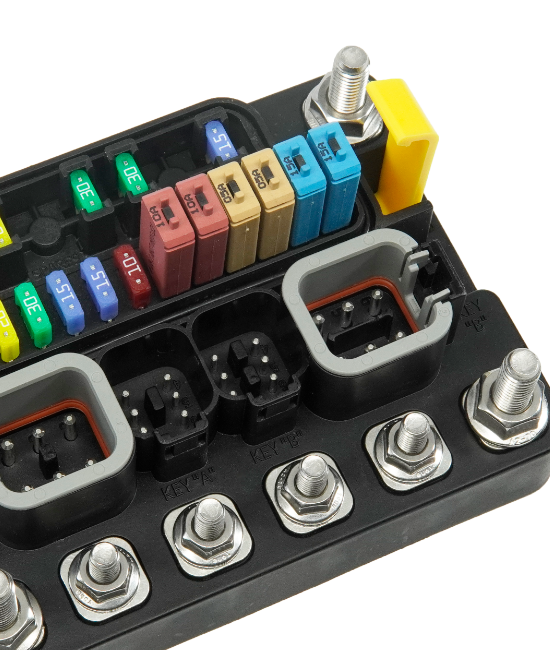

Compatible With MT Series Sealed Fuse Blocks

Color Code For Easy Identification

28V - Voltage Rating

High Interrupt Current Capacity

Type III


Ignition Protected


4720 ATM / MINI Circuit Breaker

 5 Amp             15 Amp

7.5 Amp         20 Amp

10 Amp         25 Amp

30 Amp

CONTINUOUS
CURRENT (AMPS)

5-30

MAX VOLTAGE
(VDC)

28

CYCLING
ENDURANCE
100+

INTERRUPT CURRENT @ 32 VDC (AMPS)
2,000

Circuit Breaker Type
ATM / MINI

Operating Temperature Range

-40C to 85C

Information Sheet

     STEP File

Social Media



 Focal Features

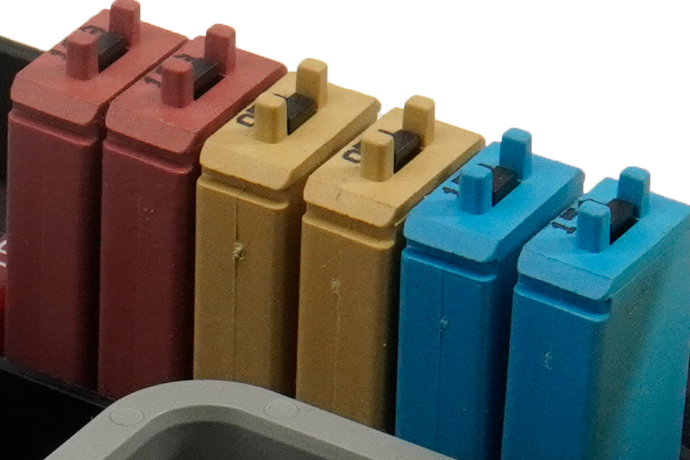

Compact Design

Easy To Install In Close Proximity For Maximum Circuit Protection Density.

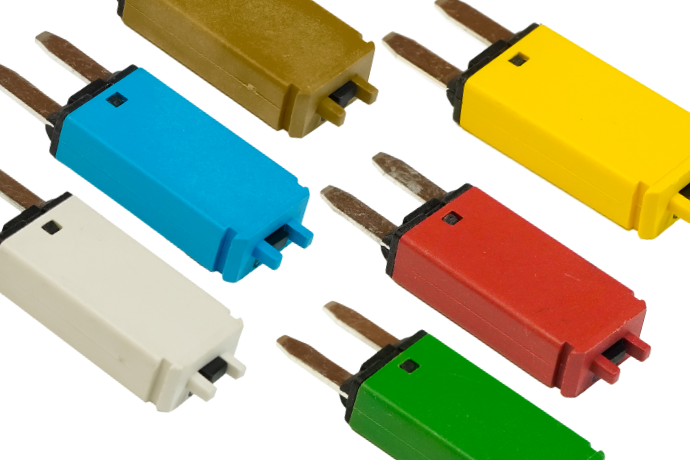

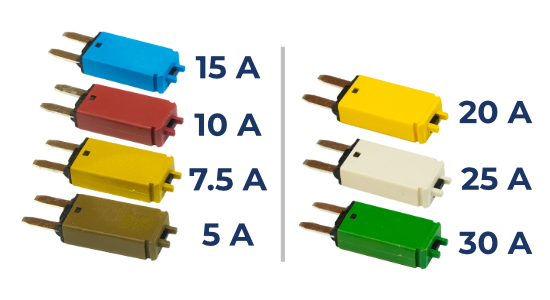

Color Coded

For Easy ID Of Amperage Rating​

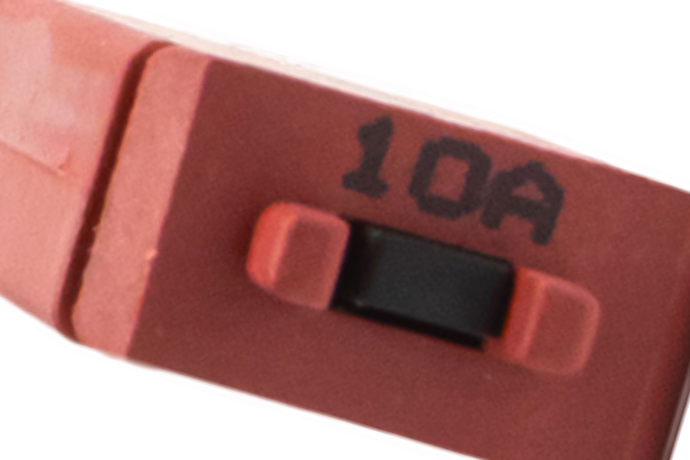

Easy Reset

Easily Reset If the Breaker With Push Button Next To Easy To Identify Amperage

Flexible Amperage Choice
